ResNet50 v1.5 for TensorFlow1

With modified architecture and initialization this ResNet50 version gives ~0.5% better accuracy than original.

The performance measurements in this document were conducted at the time of publication and may not reflect the performance achieved from NVIDIA's latest software release. For the most up-to-date performance measurements, go to NVIDIA Data Center Deep Learning Product Performance.

Benchmarking

The following section shows how to run benchmarks measuring the model performance in training and inference modes.

Training performance benchmark

To benchmark the training performance on a specific batch size, run:

For 1 GPU
- FP32 / TF32

  python ./main.py --mode=training_benchmark --warmup_steps 200 --batch_size <batch size> --data_dir=<path to imagenet> --results_dir=<path to results directory>
- AMP

  python ./main.py --mode=training_benchmark --amp --warmup_steps 200 --batch_size <batch size> --data_dir=<path to imagenet> --results_dir=<path to results directory>
For multiple GPUs
- FP32 / TF32

  mpiexec --allow-run-as-root --bind-to socket -np <num_gpus> python ./main.py --mode=training_benchmark --batch_size <batch size> --data_dir=<path to imagenet> --results_dir=<path to results directory>
- AMP

  mpiexec --allow-run-as-root --bind-to socket -np <num_gpus> python ./main.py --mode=training_benchmark --amp --batch_size <batch size> --data_dir=<path to imagenet> --results_dir=<path to results directory>

Each of these scripts runs 200 warm-up iterations and measures the first epoch.

To control warmup and benchmark length, use the --warmup_steps, --num_iter and --iter_unit flags. Features like XLA or DALI can be controlled with --xla and --dali flags. For proper throughput reporting the value of --num_iter must be greater than --warmup_steps value. Suggested batch sizes for training are 256 for mixed precision training and 128 for single precision training per single V100 16 GB.

If no --data_dir=<path to imagenet> flag is specified then the benchmarks will use a synthetic dataset. The resolution of synthetic images used can be controlled with --synthetic_data_size flag.

Inference performance benchmark

To benchmark the inference performance on a specific batch size, run:

FP32 / TF32

python ./main.py --mode=inference_benchmark --warmup_steps 20 --num_iter 100 --iter_unit batch --batch_size <batch size> --data_dir=<path to imagenet> --results_dir=<path to results directory>

python ./main.py --mode=inference_benchmark --amp --warmup_steps 20 --num_iter 100 --iter_unit batch --batch_size <batch size> --data_dir=<path to imagenet> --results_dir=<path to results directory>

By default, each of these scripts runs 20 warm-up iterations and measures the next 80 iterations. To control warm-up and benchmark length, use the --warmup_steps, --num_iter and --iter_unit flags. If no --data_dir=<path to imagenet> flag is specified then the benchmarks will use a synthetic dataset.

The benchmark can be automated with the inference_benchmark.sh script provided in resnet50v1.5, by simply running: bash ./resnet50v1.5/inference_benchmark.sh <data dir> <data idx dir>

The <data dir> parameter refers to the input data directory (by default /data/tfrecords inside the container). By default, the benchmark tests the following configurations: FP32, AMP, AMP + XLA with different batch sizes. When the optional directory with the DALI index files <data idx dir> is specified, the benchmark executes an additional DALI + AMP + XLA configuration. For proper throughput reporting the value of --num_iter must be greater than --warmup_steps value.

For performance benchmark of raw model, synthetic dataset can be used. To use synthetic dataset, use --synthetic_data_size flag instead of --data_dir to specify input image size.

Results

The following sections provide details on how we achieved our performance and accuracy in training and inference.

Training accuracy results

Training accuracy: NVIDIA DGX A100 (8x A100 40GB)

Our results were obtained by running the /resnet50v1.5/training/DGXA100_RN50_{PRECISION}_90E.sh training script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA DGX A100 (8x A100 40GB) GPUs.

Epochs	Batch Size / GPU	Accuracy - TF32 (top1)	Accuracy - mixed precision (top1)
90	256	77.01	76.93

Training accuracy: NVIDIA DGX-1 (8x V100 16G)

Our results were obtained by running the /resnet50v1.5/training/DGX1_RN50_{PRECISION}_{EPOCHS}E.sh training script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA DGX-1 with (8x V100 16G) GPUs.

Epochs	Batch Size / GPU	Accuracy - FP32	Accuracy - mixed precision
90	128 (FP32) / 256 (AMP)	77.01	76.99
250	128 (FP32) / 256 (AMP)	78.34	78.35

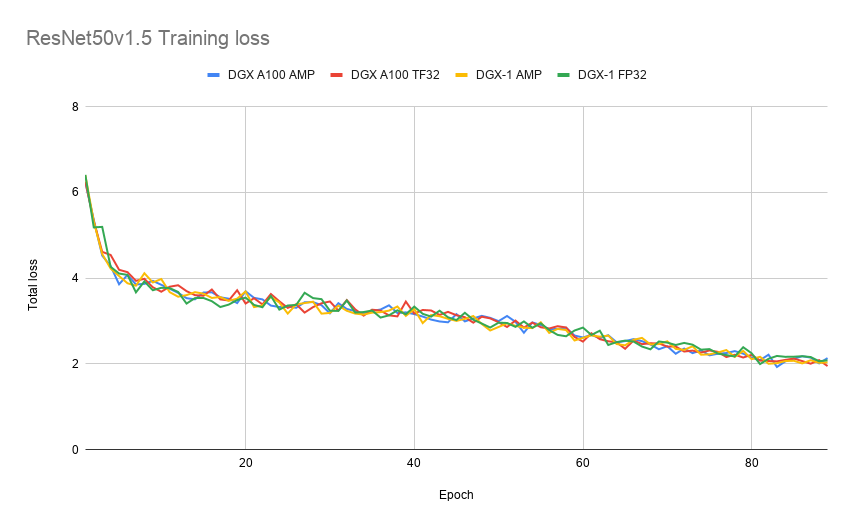

Example training loss plot

TrainingLoss

Training performance results

Training performance: NVIDIA DGX A100 (8x A100 40GB)

Our results were obtained by running the resnet50v1.5/training/training_perf.sh benchmark script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA DGX A100 (8x A100 40GB) GPUs. Performance numbers (in images per second) were averaged over an entire training epoch.

GPUs	Batch Size / GPU	Throughput - TF32 + XLA	Throughput - mixed precision + XLA	Throughput speedup (TF32 - mixed precision)	Weak scaling - TF32 + XLA	Weak scaling - mixed precision + XLA
1	256	909 img/s	2375 img/s	2.60x	1.00x	1.00x
8	256	7000 img/s	17400 img/s	2.48x	7.70x	7.32x

Training performance: NVIDIA DGX-1 (8x V100 16G)

Our results were obtained by running the resnet50v1.5/training/training_perf.sh benchmark script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA DGX-1 with (8x V100 16G) GPUs. Performance numbers (in images per second) were averaged over an entire training epoch.

GPUs	Batch Size / GPU	Throughput - FP32 + XLA	Throughput - mixed precision + XLA	Throughput speedup (FP32 - mixed precision)	Weak scaling - FP32 + XLA	Weak scaling - mixed precision + XLA
1	128 (FP32) / 256 (AMP)	412 img/s	1270 img/s	3.08x	1.00x	1.00x
8	128 (FP32) / 256 (AMP)	3170 img/s	9510 img/s	3.00x	7.69x	7.48x

Training performance: NVIDIA DGX-2 (16x V100 32G)

Our results were obtained by running the resnet50v1.5/training/training_perf.sh benchmark script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA DGX-2 with (16x V100 32G) GPUs. Performance numbers (in images per second) were averaged over an entire training epoch.

GPUs	Batch Size / GPU	Throughput - FP32 + XLA	Throughput - mixed precision + XLA	Throughput speedup (FP32 - mixed precision)	Weak scaling - FP32 + XLA	Weak scaling - mixed precision + XLA
1	128 (FP32) / 256 (AMP)	432 img/s	1300 img/s	3.01x	1.00x	1.00x
16	128 (FP32) / 256 (AMP)	6500 img/s	17250 img/s	2.65x	15.05x	13.27x

Training Time for 90 Epochs

Training time: NVIDIA DGX A100 (8x A100 40GB)

Our results were estimated based on the training performance results on NVIDIA DGX A100 with (8x A100 40G) GPUs.

GPUs	Time to train - mixed precision + XLA	Time to train - TF32 + XLA
1	~18h	~40h
8	~2h	~5h

Training time: NVIDIA DGX-1 (8x V100 16G)

Our results were estimated based on the training performance results on NVIDIA DGX-1 with (8x V100 16G) GPUs.

GPUs	Time to train - mixed precision + XLA	Time to train - FP32 + XLA
1	~25h	~77h
8	~3.5h	~10h

Training time: NVIDIA DGX-2 (16x V100 32G)

Our results were estimated based on the training performance results on NVIDIA DGX-2 with (16x V100 32G) GPUs.

GPUs	Time to train - mixed precision + XLA	Time to train - FP32 + XLA
1	~25h	~74h
16	~2h	~5h

Inference performance results

Inference performance: NVIDIA DGX A100 (1x A100 40GB)

Our results were obtained by running the inference_benchmark.sh inferencing benchmarking script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA DGX A100 with (1x A100 40G) GPU.

TF32 Inference Latency

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	191.23 img/s	5.26 ms	5.29 ms	5.31 ms	5.42 ms
2	376.83 img/s	5.34 ms	5.36 ms	5.39 ms	5.56 ms
4	601.12 img/s	6.65 ms	6.80 ms	6.93 ms	7.05 ms
8	963.86 img/s	8.31 ms	8.63 ms	8.80 ms	9.17 ms
16	1361.58 img/s	11.82 ms	12.04 ms	12.15 ms	12.44 ms
32	1602.09 img/s	19.99 ms	20.48 ms	20.74 ms	21.36 ms
64	1793.81 img/s	35.82 ms	37.22 ms	37.43 ms	37.84 ms
128	1876.22 img/s	68.23 ms	69.60 ms	70.08 ms	70.70 ms
256	1911.96 img/s	133.90 ms	135.16 ms	135.59 ms	136.49 ms

TF32 Inference Latency + XLA

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	158.67 img/s	6.34 ms	6.39 ms	6.46 ms	7.16 ms
2	321.83 img/s	6.24 ms	6.29 ms	6.34 ms	6.39 ms
4	574.28 img/s	7.01 ms	7.03 ms	7.06 ms	7.14 ms
8	1021.20 img/s	7.84 ms	8.00 ms	8.08 ms	8.28 ms
16	1515.79 img/s	10.56 ms	10.88 ms	10.98 ms	11.22 ms
32	1945.44 img/s	16.46 ms	16.78 ms	16.96 ms	17.49 ms
64	2313.13 img/s	27.81 ms	28.68 ms	29.10 ms	30.33 ms
128	2449.88 img/s	52.27 ms	54.00 ms	54.43 ms	56.85 ms
256	2548.87 img/s	100.45 ms	102.34 ms	103.04 ms	104.81 ms

Mixed Precision Inference Latency

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	223.35 img/s	4.51 ms	4.50 ms	4.52 ms	4.76 ms
2	435.51 img/s	4.63 ms	4.62 ms	4.64 ms	4.76 ms
4	882.00 img/s	4.63 ms	4.60 ms	4.71 ms	5.36 ms
8	1503.24 img/s	5.40 ms	5.50 ms	5.59 ms	5.78 ms
16	1903.58 img/s	8.47 ms	8.67 ms	8.77 ms	9.14 ms
32	1974.01 img/s	16.23 ms	16.65 ms	16.96 ms	17.98 ms
64	3570.46 img/s	18.14 ms	18.26 ms	18.43 ms	19.35 ms
128	3474.94 img/s	37.86 ms	44.09 ms	55.30 ms	66.90 ms
256	3229.32 img/s	81.02 ms	96.21 ms	105.67 ms	126.31 ms

Mixed Precision Inference Latency + XLA

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	174.68 img/s	5.76 ms	5.81 ms	5.95 ms	6.13 ms
2	323.90 img/s	6.21 ms	6.26 ms	6.31 ms	6.64 ms
4	639.75 img/s	6.25 ms	6.45 ms	6.55 ms	6.79 ms
8	1215.50 img/s	6.59 ms	6.94 ms	7.03 ms	7.25 ms
16	2219.96 img/s	7.29 ms	7.45 ms	7.57 ms	8.09 ms
32	2363.70 img/s	13.70 ms	13.91 ms	14.08 ms	14.64 ms
64	3940.95 img/s	18.76 ms	26.58 ms	35.41 ms	59.06 ms
128	3274.01 img/s	41.70 ms	52.19 ms	61.14 ms	78.68 ms
256	3676.14 img/s	71.67 ms	82.36 ms	88.53 ms	108.18 ms

Inference performance: NVIDIA DGX-1 (1x V100 16G)

Our results were obtained by running the inference_benchmark.sh inferencing benchmarking script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA DGX-1 with (1x V100 16G) GPU.

FP32 Inference Latency

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	173.35 img/s	5.79 ms	5.90 ms	5.95 ms	6.04 ms
2	303.65 img/s	6.61 ms	6.80 ms	6.87 ms	7.01 ms
4	562.35 img/s	7.12 ms	7.32 ms	7.42 ms	7.69 ms
8	783.24 img/s	10.22 ms	10.37 ms	10.44 ms	10.60 ms
16	1003.10 img/s	15.99 ms	16.07 ms	16.12 ms	16.29 ms
32	1140.12 img/s	28.19 ms	28.27 ms	28.38 ms	28.54 ms
64	1252.06 img/s	51.12 ms	51.82 ms	52.75 ms	53.45 ms
128	1324.91 img/s	96.61 ms	97.02 ms	97.25 ms	99.08 ms
256	1348.52 img/s	189.85 ms	191.16 ms	191.77 ms	192.47 ms

Mixed Precision Inference Latency

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	237.35 img/s	4.25 ms	4.39 ms	4.54 ms	5.30 ms
2	464.94 img/s	4.32 ms	4.63 ms	4.83 ms	5.52 ms
4	942.44 img/s	4.26 ms	4.55 ms	4.74 ms	5.45 ms
8	1454.93 img/s	5.57 ms	5.73 ms	5.91 ms	6.51 ms
16	2003.75 img/s	8.13 ms	8.19 ms	8.29 ms	8.50 ms
32	2356.17 img/s	13.69 ms	13.82 ms	13.92 ms	14.26 ms
64	2706.11 img/s	23.86 ms	23.82 ms	23.89 ms	24.10 ms
128	2770.61 img/s	47.04 ms	49.36 ms	62.43 ms	90.05 ms
256	2742.14 img/s	94.67 ms	108.02 ms	119.34 ms	145.55 ms

Mixed Precision Inference Latency + XLA

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	162.95 img/s	6.16 ms	6.28 ms	6.34 ms	6.50 ms
2	335.63 img/s	5.96 ms	6.10 ms	6.14 ms	6.25 ms
4	637.72 img/s	6.30 ms	6.53 ms	7.17 ms	8.10 ms
8	1153.92 img/s	7.03 ms	7.97 ms	8.22 ms	9.00 ms
16	1906.52 img/s	8.64 ms	9.51 ms	9.88 ms	10.47 ms
32	2492.78 img/s	12.84 ms	13.06 ms	13.13 ms	13.24 ms
64	2910.05 img/s	22.66 ms	21.82 ms	24.71 ms	48.61 ms
128	2964.31 img/s	45.25 ms	59.30 ms	71.42 ms	98.72 ms
256	2898.12 img/s	90.53 ms	106.12 ms	118.12 ms	150.78 ms

Inference performance: NVIDIA DGX-2 (1x V100 32G)

Our results were obtained by running the inference_benchmark.sh inferencing benchmarking script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA DGX-2 with (1x V100 32G) GPU.

FP32 Inference Latency

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	187.41 img/s	5.374 ms	5.61 ms	5.70 ms	6.33 ms
2	339.52 img/s	5.901 ms	6.16 ms	6.29 ms	6.53 ms
4	577.50 img/s	6.940 ms	7.07 ms	7.24 ms	7.99 ms
8	821.15 img/s	9.751 ms	9.99 ms	10.15 ms	10.80 ms
16	1055.64 img/s	15.209 ms	15.26 ms	15.30 ms	16.14 ms
32	1195.74 img/s	26.772 ms	26.93 ms	26.98 ms	27.80 ms
64	1313.83 img/s	48.796 ms	48.99 ms	49.72 ms	51.83 ms
128	1372.58 img/s	93.262 ms	93.90 ms	94.97 ms	96.57 ms
256	1414.99 img/s	180.923 ms	181.65 ms	181.92 ms	183.37 ms

Mixed Precision Inference Latency

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	289.89 img/s	3.50 ms	3.81 ms	3.90 ms	4.19 ms
2	606.27 img/s	3.38 ms	3.56 ms	3.76 ms	4.25 ms
4	982.92 img/s	4.09 ms	4.42 ms	4.53 ms	4.81 ms
8	1553.34 img/s	5.22 ms	5.31 ms	5.50 ms	6.74 ms
16	2091.27 img/s	7.82 ms	7.77 ms	7.82 ms	8.77 ms
32	2457.61 img/s	13.14 ms	13.15 ms	13.21 ms	13.37 ms
64	2746.11 img/s	23.31 ms	23.50 ms	23.56 ms	24.31 ms
128	2937.20 img/s	43.58 ms	43.76 ms	43.82 ms	44.37 ms
256	3009.83 img/s	85.06 ms	86.23 ms	87.37 ms	88.67 ms

Mixed Precision Inference Latency + XLA

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	240.66 img/s	4.22 ms	4.59 ms	4.69 ms	4.84 ms
2	428.60 img/s	4.70 ms	5.11 ms	5.44 ms	6.01 ms
4	945.38 img/s	4.26 ms	4.35 ms	4.42 ms	4.74 ms
8	1518.66 img/s	5.33 ms	5.50 ms	5.63 ms	5.88 ms
16	2091.66 img/s	7.83 ms	7.74 ms	7.79 ms	8.88 ms
32	2604.17 img/s	12.40 ms	12.45 ms	12.51 ms	12.61 ms
64	3101.15 img/s	20.64 ms	20.93 ms	21.00 ms	21.17 ms
128	3408.72 img/s	37.55 ms	37.93 ms	38.05 ms	38.53 ms
256	3633.85 img/s	70.85 ms	70.93 ms	71.12 ms	71.45 ms

Inference performance: NVIDIA T4 (1x T4 16G)

Our results were obtained by running the inference_benchmark.sh inferencing benchmarking script in the TensorFlow 20.06-tf1-py3 NGC container NGC container on NVIDIA T4 with (1x T4 16G) GPU.

FP32 Inference Latency

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	136.44 img/s	7.34 ms	7.43 ms	7.47 ms	7.54 ms
2	215.38 img/s	9.29 ms	9.42 ms	9.46 ms	9.59 ms
4	289.29 img/s	13.83 ms	14.08 ms	14.16 ms	14.40 ms
8	341.77 img/s	23.41 ms	23.79 ms	23.86 ms	24.11 ms
16	394.36 img/s	40.58 ms	40.87 ms	40.98 ms	41.41 ms
32	414.66 img/s	77.18 ms	78.05 ms	78.29 ms	78.67 ms
64	424.42 img/s	150.82 ms	152.99 ms	153.44 ms	154.34 ms
128	429.83 img/s	297.82 ms	301.09 ms	301.60 ms	302.51 ms
256	425.72 img/s	601.37 ms	605.74 ms	606.47 ms	608.74 ms

Mixed Precision Inference Latency

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	211.04 img/s	4.77 ms	5.05 ms	5.08 ms	5.15 ms
2	381.23 img/s	5.27 ms	5.40 ms	5.45 ms	5.52 ms
4	593.13 img/s	6.75 ms	6.89 ms	6.956 ms	7.02 ms
8	791.12 img/s	10.16 ms	10.35 ms	10.43 ms	10.68 ms
16	914.26 img/s	17.55 ms	17.80 ms	17,89 ms	18.19 ms
32	972.36 img/s	32.92 ms	33.33 ms	33.46 ms	33.61 ms
64	991.39 img/s	64.56 ms	65.62 ms	65.92 ms	66.35 ms
128	995.81 img/s	128.55 ms	130.03 ms	130.37 ms	131.08 ms
256	993.39 img/s	257.71 ms	259.26 ms	259.62 ms	260.36 ms

Mixed Precision Inference Latency + XLA

Batch Size	Avg throughput	Avg latency	90% Latency	95% Latency	99% Latency
1	167.01 img/s	6.01 ms	6.12 ms	6.14 ms	6.18 ms
2	333.67 img/s	6.03 ms	6.11 ms	6.15 ms	6.23 ms
4	605.94 img/s	6.63 ms	6.79 ms	6.86 ms	7.02 ms
8	802.13 img/s	9.98 ms	10.14 ms	10.22 ms	10.36 ms
16	986.85 img/s	16.27 ms	16.36 ms	16.42 ms	16.52 ms
32	1090.38 img/s	29.35 ms	29.68 ms	29.79 ms	30.07 ms
64	1131.56 img/s	56.63 ms	57.22 ms	57.41 ms	57.76 ms
128	1167.62 img/s	109.77 ms	111.06 ms	111.27 ms	111.85 ms
256	1193.74 img/s	214.46 ms	216.28 ms	216.86 ms	217.80 ms
