A convolution-based neural network for the task of object detection.
Benchmarking
Benchmarking can be performed for both training and inference. Both the scripts run the EfficientDet model. You can specify whether benchmarking is performed in AMP, TF32, or FP32 by specifying it as an argument to the benchmarking scripts.
Training performance benchmark
Training benchmarking can be performed by running the script:
scripts/D0/train-benchmark_{AMP, TF32, FP32}_{V100-32G, A100-80G}.sh
Inference performance benchmark
Inference benchmarking can be performed by running the script:
scripts/D0/inference_{AMP, FP32, TF32}_{A100-80G, V100-32G}.sh
Results
The following sections provide details on how we achieved our performance and accuracy in training and inference.
Training Accuracy Results
Training accuracy: NVIDIA DGX A100 (8x A100 80GB)
Our results were obtained by running the scripts/D0/train_{AMP, TF32}_8xA100-80G.sh training script in the 21.06-py3 NGC container on NVIDIA DGX A100 (8x A100 80GB) GPUs with no intermediate evaluation.
| GPUs | BBOX mAP - TF32 | BBOX mAP - FP16 | Time to train - TF32 | Time to train - mixed precision | Time to train - speedup (TF32 to mixed precision) |
|---|---|---|---|---|---|
| 8 | 0.3399 | 0.3407 | 8.57 | 6.5 | 1.318 |
Training accuracy: NVIDIA DGX-1 (8x V100 32GB)
Our results were obtained by running the scripts/D0/train_{AMP, FP32}_8xV100-32G.sh training script in the PyTorch 21.06-py3 NGC container on NVIDIA DGX-1 with 8x V100 32GB GPUs with no intermediate evaluation.
| GPUs | BBOX mAP - FP32 | BBOX mAP - FP16 | Time to train - FP32 | Time to train - mixed precision | Time to train - speedup (FP32 to mixed precision) |
|---|---|---|---|---|---|
| 8 | 0.3410 | 0.3413 | 16 | 10.5 | 1.52 |
Training accuracy: NVIDIA DGX-1 (32x V100 32GB)
Our results were obtained by running the scripts/D0/train_{AMP, FP32}_32xV100-32G.sh training script in the PyTorch 21.06-py3 NGC container on NVIDIA DGX-1 with 32x V100 32GB GPUs with no intermediate evaluation.
| GPUs | BBOX mAP - FP32 | BBOX mAP - FP16 | Time to train - FP32 | Time to train - mixed precision | Time to train - speedup (FP32 to mixed precision) |
|---|---|---|---|---|---|
| 32 | 0.3418 | 0.3373 | 6 | 4.95 | 1.22 |
Training accuracy on Waymo dataset: NVIDIA DGX A100 (8x A100 80GB)
Our results were obtained by running the scripts/waymo/train_waymo_AMP_8xA100-80G.sh training script in the 21.06-py3 NGC container on the Waymo dataset on NVIDIA DGX A100 (8x A100 80GB) GPUs with no intermediate evaluation. These results were obtained by training the EfficientDet-D0 model with a frozen backbone.
| category | mAP | category | AP @ IoU 0.7 | category | AP @ IoU 0.5 | category | AP @ IoU 0.5 |
|---|---|---|---|---|---|---|---|
| L2_ALL_NS | 50.377 | Vehicle | 50.271 | Pedestrian | 61.788 | Cyclist | 39.072 |
The following results were obtained by training the EfficientDet-D0 model without freezing any part of the architecture. This can be done by removing the --freeze_layer argument from the script.
| category | mAP | category | AP @ IoU 0.7 | category | AP @ IoU 0.5 | category | AP @ IoU 0.5 |
|---|---|---|---|---|---|---|---|
| L2_ALL_NS | 51.249 | Vehicle | 51.091 | Pedestrian | 62.816 | Cyclist | 39.841 |

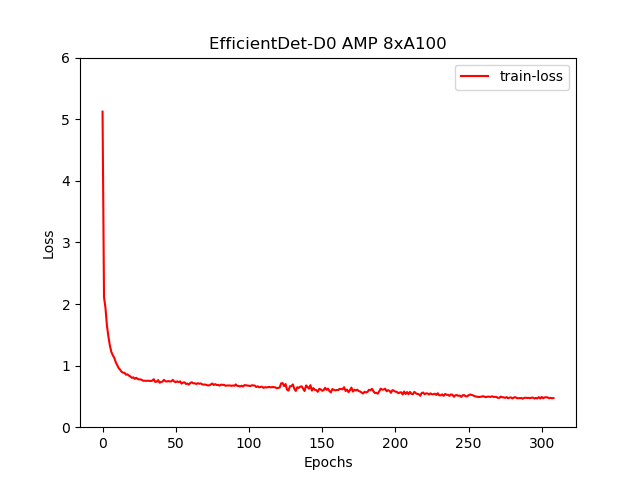

Training loss curves
Here, multihead loss is simply the weighted sum of losses on the classification head and the bounding box head.
Training Stability Test
The following tables compare mAP scores across five different training runs with different seeds. The runs showcase consistent convergence on all five seeds with very little deviation.
| Config | Seed 1 | Seed 2 | Seed 3 | Seed 4 | Seed 5 | Mean | Standard Deviation |
|---|---|---|---|---|---|---|---|
| 8 GPUs, final AP BBox | 0.3422 | 0.3379 | 0.3437 | 0.3424 | 0.3402 | 0.3412 | 0.002 |
Training Performance Results
Training performance: NVIDIA DGX A100 (8x A100 80GB)
Our results were obtained by running the scripts/D0/train_benchmark_{AMP, TP32}_8xA100-80G.sh training script in the 21.06-py3 NGC container on NVIDIA DGX A100 (8x A100 80GB) GPUs. Performance numbers in images per second were averaged over an entire training epoch.
| GPUs | Throughput - TF32 | Throughput - mixed precision | Throughput speedup (TF32 - mixed precision) | Weak scaling - TF32 | Weak scaling - mixed precision |
|---|---|---|---|---|---|
| 1 | 170 | 255 | 1.5 | 1 | 1 |
| 4 | 616 | 866 | 1.4 | 3.62 | 3.39 |
| 8 | 1213 | 1835 | 1.5 | 7.05 | 7.05 |
Training performance: NVIDIA DGX-1 (8x V100 32GB)
Our results were obtained by running the scripts/D0/train_benchmark_{AMP, FP32}_8xV100-32G.sh training script in the 21.06-py3 NGC container on NVIDIA DGX-1 with (8x V100 32GB) GPUs. Performance numbers in images per second were averaged over an entire training epoch.
| GPUs | Throughput - FP32 | Throughput - mixed precision | Throughput speedup (FP32 - mixed precision) | Weak scaling - FP32 | Weak scaling - mixed precision |
|---|---|---|---|---|---|
| 1 | 110 | 186 | 1.69 | 1 | 1 |
| 4 | 367 | 610 | 1.66 | 3.33 | 3.28 |
| 8 | 613 | 1040 | 1.69 | 5.57 | 5.59 |
To achieve similar results, follow the steps in the Quick Start Guide.
Inference performance results
Inference performance: NVIDIA DGX A100 (1x A100 40GB)
Our results were obtained by running the scripts/inference_{AMP, TF32}_A100-80G.sh training script in the PyTorch 21.06-py3 NGC container on NVIDIA DGX A100 (1x A100 80GB) GPU.
| GPUs | Batch size / GPU | Throughput - TF32 | Throughput - mixed precision | Throughput speedup (TF32 - mixed precision) |
|---|---|---|---|---|
| 1 | 8 | 45.61 | 50.23 | 1.101 |
To achieve similar results, follow the steps in the Quick Start Guide.
Inference performance: NVIDIA DGX-1 (1x V100 32GB)
Our results were obtained by running the scripts/inference_{AMP, FP32}_V100-32G.sh training script in the PyTorch 21.06-py3 NGC container on NVIDIA DGX-1 with 1x V100 32GB GPUs. Performance numbers (in items/images per second) were averaged over an entire training epoch.
| GPUs | Batch size / GPU | Throughput - FP32 | Throughput - mixed precision | Throughput speedup (FP32 - mixed precision) |
|---|---|---|---|---|
| 1 | 8 | 38.81 | 42.25 | 1.08 |
To achieve these same results, follow the steps in the Quick Start Guide.
