SIM for TensorFlow2

The performance measurements in this document were conducted at the time of publication and may not reflect the performance achieved from NVIDIA's latest software release. For the most up-to-date performance measurements, go to NVIDIA Data Center Deep Learning Product Performance.

Benchmarking

The following section shows how to run benchmarks measuring the model performance in training and inference modes.

Training performance benchmark

To benchmark the training performance on a specific batch size, run:

mpiexec --allow-run-as-root --bind-to socket -np ${GPU} python main.py \
  --dataset_dir ${TF_RECORD_PATH} \
  --mode train \
  --model_type sim \
  --global_batch_size 131072 \
  --drop_remainder \
  --amp \
  --benchmark \
  --prebatch_train_size ${PREBATCH_TRAIN_SIZE} \
  --prebatch_test_size ${PREBATCH_TEST_SIZE}

Equivalent:

scripts/run_model.sh \
  --data_path ${TF_RECORD_PATH} \
  --gpus ${GPU} \
  --amp 1 \
  --benchmark 1 \
  --prebatch_train_size ${PREBATCH_TRAIN_SIZE} \
  --prebatch_test_size ${PREBATCH_TEST_SIZE}

Inference performance benchmark

To benchmark the inference performance on a specific batch size, run:

mpiexec --allow-run-as-root --bind-to socket -np ${GPU} python main.py \
  --dataset_dir ${TF_RECORD_PATH} \
  --mode inference \
  --model_type sim \
  --global_batch_size 131072 \
  --amp \
  --benchmark \
  --prebatch_train_size ${PREBATCH_TRAIN_SIZE} \
  --prebatch_test_size ${PREBATCH_TEST_SIZE}

Equivalent:

scripts/run_model.sh \
  --data_path ${TF_RECORD_PATH} \
  --gpus ${GPU} \
  --amp 1 \
  --benchmark 1 \
  --prebatch_train_size ${PREBATCH_TRAIN_SIZE} \
  --prebatch_test_size ${PREBATCH_TEST_SIZE}

Results

The following sections provide details on how we achieved our performance and accuracy in training and inference.

Training accuracy results

Our results were obtained by running the run_model.sh bash script in the TensorFlow2 21.10-py3 NGC container. Experiments were run on 1 and 8 GPUs, with FP32/TF32 Precision and AMP and with XLA-OFF/XLA-ON. Dataset was prebatched with the size of 16384. Other parameters were set to defaults.

There were 10 runs for each configuration. In the Training accuracy sections, average values are reported. In the Training stability sections, values from all runs are included in plots.

Training accuracy: NVIDIA DGX A100 (8x A100 80GB)

GPUs	XLA	Time to train - TF32 (seconds)	Time to train - mixed precision (seconds)	AUC - TF32	AUC - mixed precision	Time to train speedup (TF32 to mixed precision)
1	XLA-OFF	133.62	109.29	0.82	0.811	1.22
1	XLA-ON	132.31	113.91	0.811	0.822	1.16
8	XLA-OFF	35.17	34.08	0.813	0.808	1.03
8	XLA-ON	39.19	40.16	0.814	0.811	0.98

Training accuracy: NVIDIA DGX-1 (8x V100 32GB)

GPUs	XLA	Time to train - FP32 (seconds)	Time to train - mixed precision (seconds)	AUC - FP32	AUC - mixed precision	Time to train speedup (FP32 to mixed precision)
1	XLA-OFF	210.70	154.54	0.815	0.817	1.36
1	XLA-ON	203.61	159.80	0.816	0.813	1.27
8	XLA-OFF	48.643	44.02	0.811	0.817	1.11
8	XLA-ON	55.26	54.33	0.814	0.817	1.02

Training stability test

Training stability was tested over 10 runs for each configuration of double precision / AMP, XLA-ON / XLA-OFF on 1 GPU and 8 GPUs for both Volta and Ampere architectures. Each run used the same random seed and default values of training hyperparameters. Training was performed on DGX A100 80GB and DGX-1 V100 32GB setups. AUC metric achieved on test set after training is presented in the following plots.

(Plot represents XLA-OFF results, for XLA-ON results, check expandable part below)

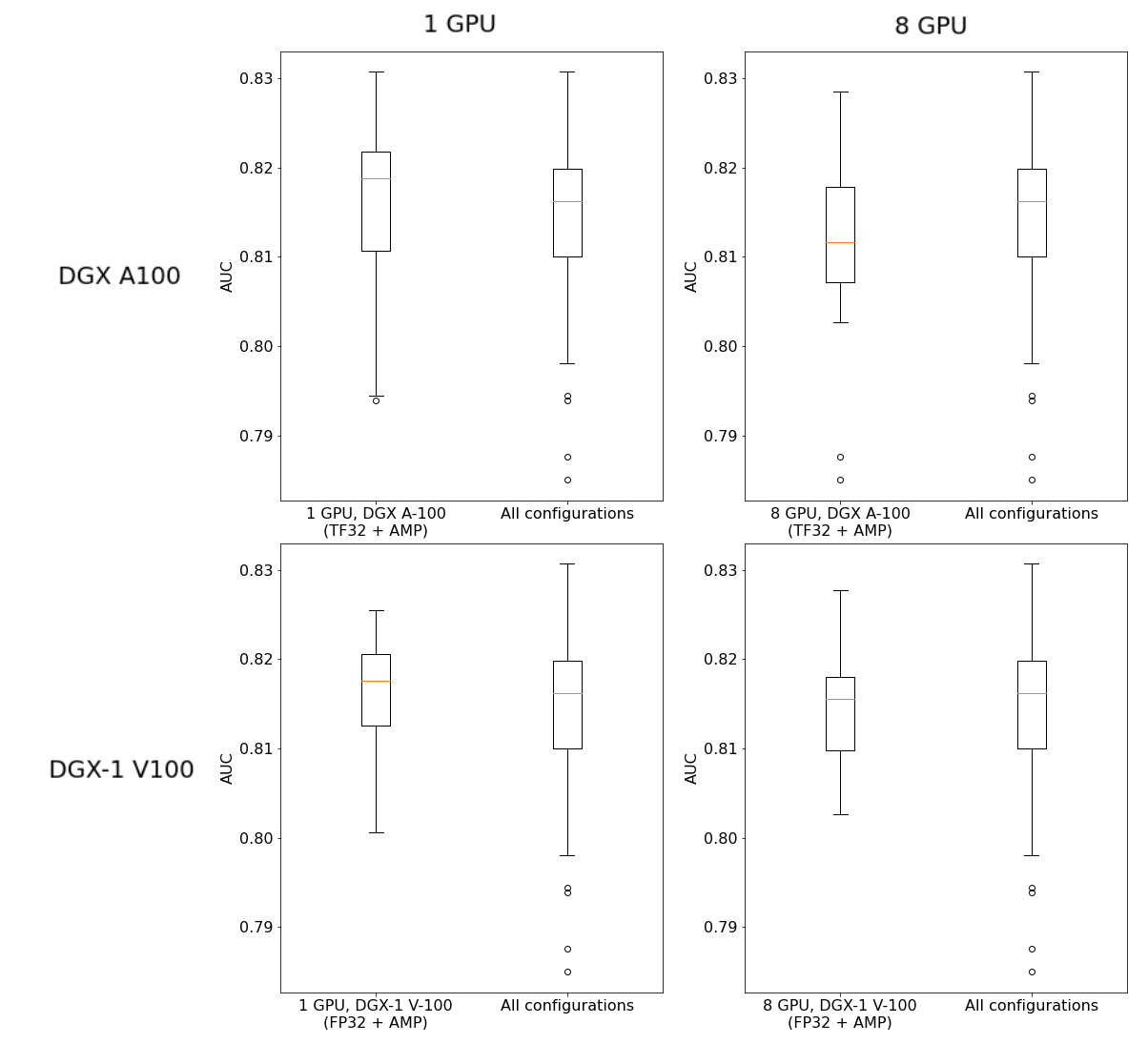

Figure 4. Training stability plot, distribution of AUC across different configurations with XLA-OFF.

Training stability with XLA-ON

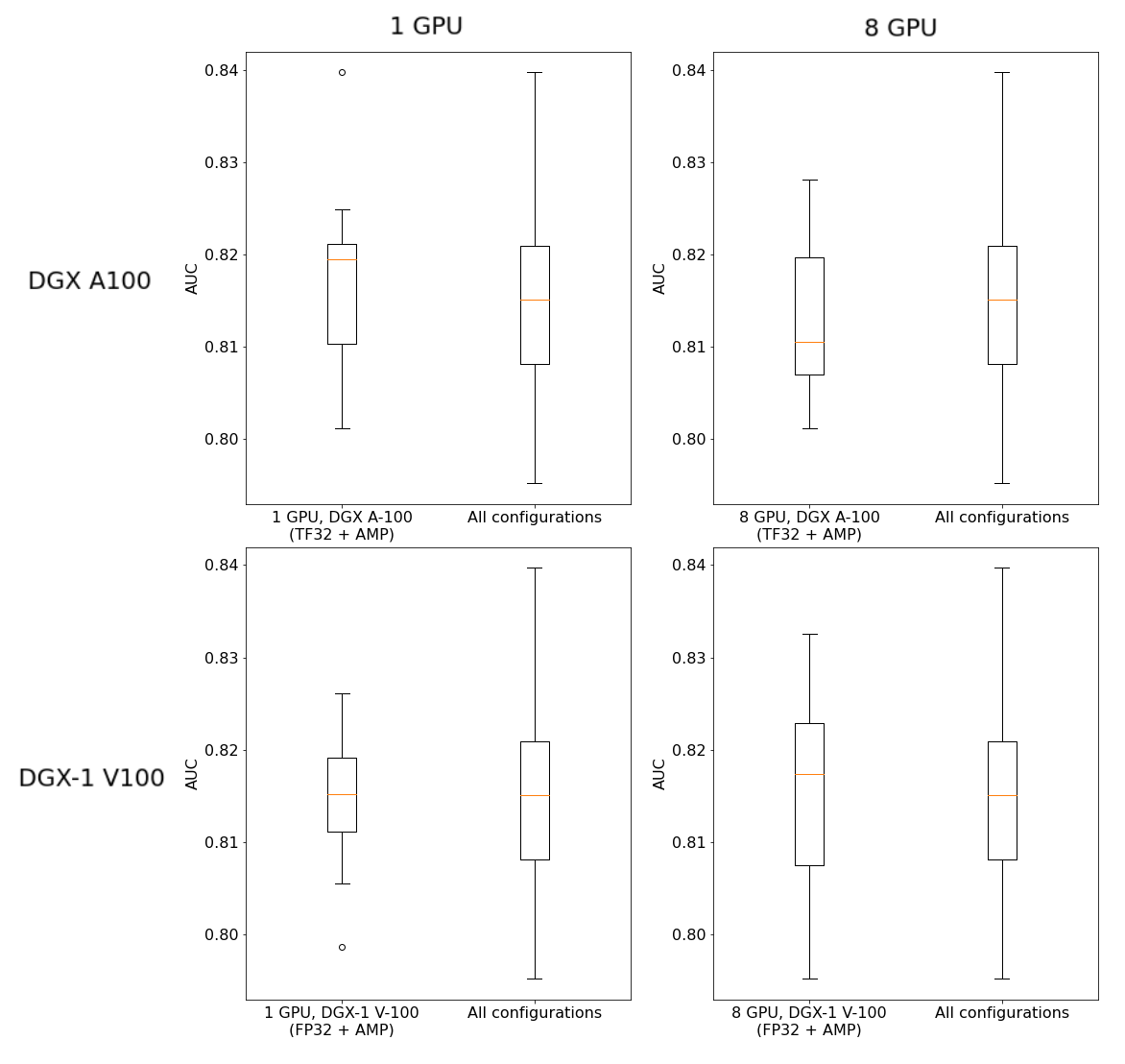

Figure 5. Training stability plot, distribution of AUC across different configurations with XLA-ON.

Complete list of training stability results

	GPUs	Precision	XLA	Mean AUC	Std AUC	Min AUC	Max AUC
DGX A100	1	TF32	XLA-OFF	0.8195	0.0083	0.7981	0.8307
DGX A100	1	TF32	XLA-ON	0.8106	0.0066	0.8012	0.8211
DGX A100	1	AMP	XLA-OFF	0.8110	0.0103	0.7939	0.8244
DGX A100	1	AMP	XLA-ON	0.8224	0.0067	0.8115	0.8397
DGX A100	8	TF32	XLA-OFF	0.8127	0.0070	0.8027	0.8285
DGX A100	8	TF32	XLA-ON	0.8143	0.0079	0.8012	0.8251
DGX A100	8	AMP	XLA-OFF	0.8084	0.0121	0.7850	0.8203
DGX A100	8	AMP	XLA-ON	0.8109	0.0077	0.8018	0.8281
DGX-1 V100	1	FP32	XLA-OFF	0.8152	0.0075	0.8006	0.8255
DGX-1 V100	1	FP32	XLA-ON	0.8158	0.0055	0.8060	0.8261
DGX-1 V100	1	AMP	XLA-OFF	0.8172	0.0045	0.8097	0.8237
DGX-1 V100	1	AMP	XLA-ON	0.8133	0.0070	0.7987	0.8234
DGX-1 V100	8	FP32	XLA-OFF	0.8112	0.0055	0.8027	0.8182
DGX-1 V100	8	FP32	XLA-ON	0.8144	0.0087	0.8037	0.8281
DGX-1 V100	8	AMP	XLA-OFF	0.8173	0.0061	0.8080	0.8277
DGX-1 V100	8	AMP	XLA-ON	0.8169	0.0109	0.7952	0.8326



For both NVIDIA Ampere and NVIDIA Volta, even though the same seed was used for each run, there is a still noticeable variance. The reason for that are built-in non-deterministic GPU kernels in tf.math.unsorted_segment_sum operation. However, since it is six times faster than the deterministic implementation of this operation, this is the preferable solution.

Impact of mixed precision on training accuracy

Results in this section present the impact of enabling AMP on the AUC. Models were trained using default parameters, on 1/8 GPUs and on Volta/Ampere architecture.

AUC is measured on test set after model training.

(Plot represents XLA-OFF results, for XLA-ON results, check expandable part below)

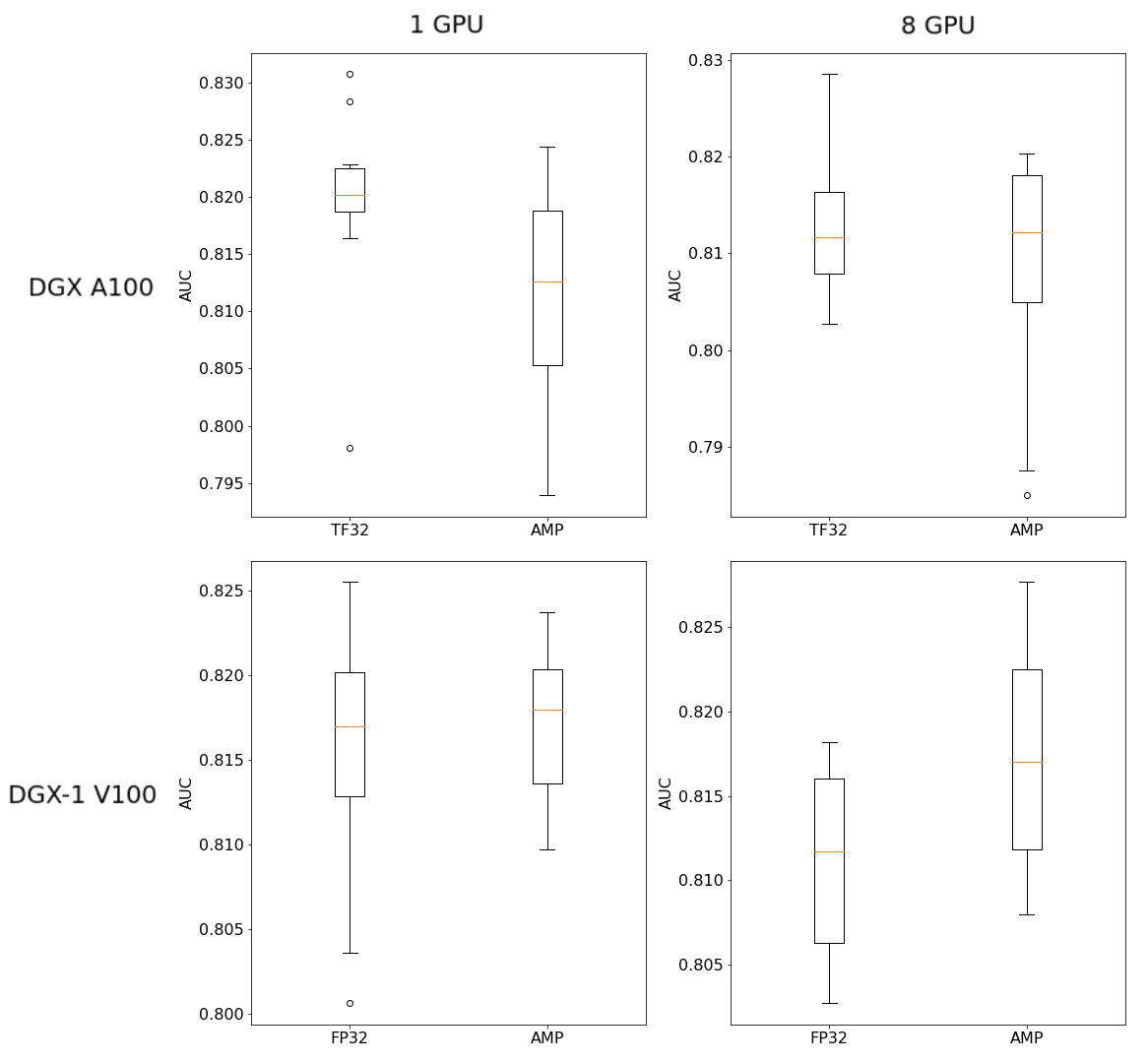

Figure 6. Impact of AMP on test set AUC (XLA-OFF)

Impact of AMP on AUC for XLA-ON

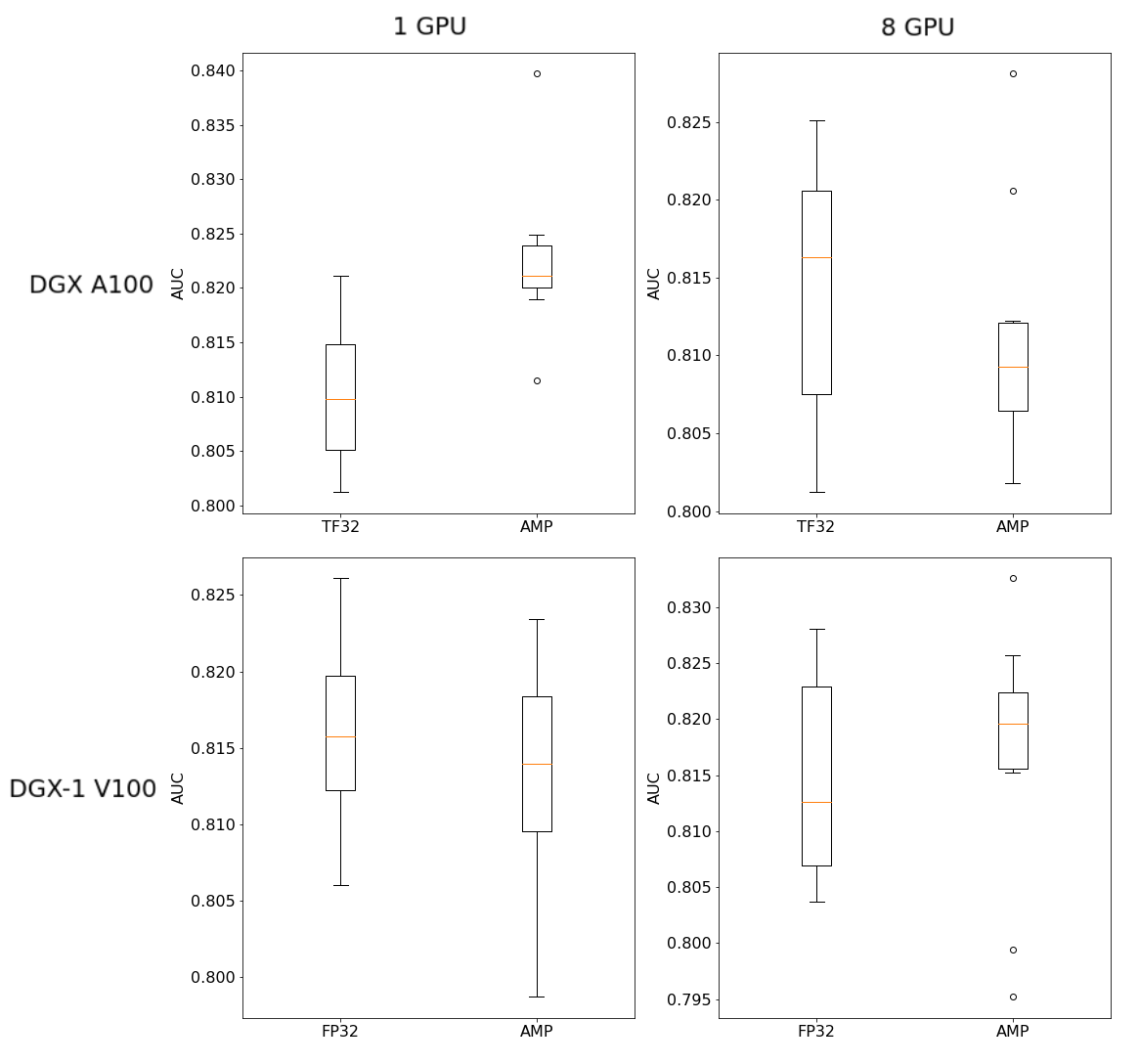

Figure 7. Impact of AMP on test set AUC (XLA-ON)



Distribution scores for full precision training and AMP training were compared in terms of mean, variance and Kolmogorov–Smirnov test to state statistical difference between full precision and AMP results. Refer to the expandable table below.

Full tabular data for AMP influence on AUC

	GPUs	XLA	Mean AUC for Full precision (TF32 for A100, FP32 for V100)	Std AUC for Full precision (TF32 for A100, FP32 for V100)	Mean AUC for AMP	Std AUC for AMP	KS test value: statistics, p-value
DGX A100	1	XLA-OFF	0.8195	0.0083	0.8110	0.0103	0.6000, 0.0524
DGX A100	1	XLA-ON	0.8106	0.0066	0.8224	0.0067	0.7000, 0.0123
DGX A100	8	XLA-OFF	0.8127	0.0070	0.8084	0.0121	0.2000, 0.9945
DGX A100	8	XLA-ON	0.8143	0.0079	0.8109	0.0077	0.4000, 0.4175
DGX-1 V100	1	XLA-OFF	0.8152	0.0075	0.8172	0.0045	0.2000, 0.9945
DGX-1 V100	1	XLA-ON	0.8158	0.0055	0.8133	0.0070	0.2000, 0.9945
DGX-1 V100	8	XLA-OFF	0.8112	0.0055	0.8173	0.0061	0.4000, 0.4175
DGX-1 V100	8	XLA-ON	0.8144	0.0087	0.8169	0.0109	0.4000, 0.4175



Training accuracy plot

Models trained with FP32, TF32, and Automatic Mixed Precision (AMP) achieve similar accuracy.

Plot represents ROC AUC on the test set for 1 and 8 GPUs, with precision FP32/TF32 (for Volta/Ampere) and AMP. All other training parameters are default.

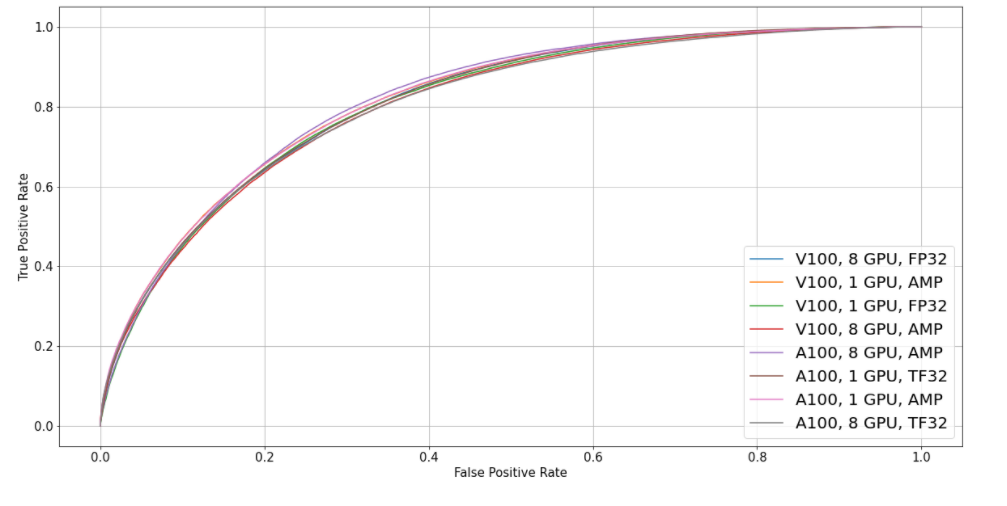

Figure 8. ROC curve for different configurations of Ampere/Volta, 1/8 GPUs, double precision / AMP. (XLA-OFF)

Training performance results

Our results were obtained by running the scripts/run_model.sh script in the TensorFlow2 21.10-py3 NGC container. Dataset was prebatched with the size of 16384.

Numbers were averaged over 10 separate runs for each configuration.

For each run, performance numbers (in samples per second) were averaged over training steps from one epoch which gives reliable estimates of the throughput. We also exclude the first 20 steps of training as a warmup phase.

The cumulative batch size of all GPUs in performance tests was set to 131072.

To achieve these same results, follow the steps in the Quick Start Guide.

Training performance: NVIDIA DGX A100 (8x A100 80GB)

GPUs	XLA	Throughput - TF32 (samples/s)	Throughput - mixed precision (samples/s)	Throughput speedup (mixed precision / TF32)	Strong scaling - TF32	Strong scaling - mixed precision
1	OFF	377254.65	479921.54	1.27	1.00	1.00
1	ON	455724.01	565221.04	1.24	1.00	1.00
8	OFF	2161681.55	2603489.60	1.20	5.73	5.42
8	ON	2662368.18	2979441.80	1.12	5.84	5.27

NVIDIA DGX A100 XLA-ON / XLA-OFF training speedup

For each configuration of parameters present in the table, the Speedup column shows the speedup achieved by turning on XLA.

GPUs	Precision	Speedup
1	TF32	1.208
1	AMP	1.178
8	TF32	1.232
8	AMP	1.119



Training performance: NVIDIA DGX-2 (16x V100 32GB)

GPUs	XLA	Throughput - FP32 (samples/s)	Throughput - mixed precision (samples/s)	Throughput speedup (mixed precision / FP32)	Strong scaling - FP32	Strong scaling - mixed precision
1	OFF	209376.38	309752.48	1.48	1.00	1.00
1	ON	245414.62	348945.59	1.42	1.00	1.00
8	OFF	1310239.01	1689602.79	1.29	6.26	5.45
8	ON	1483120.32	1962226.32	1.32	6.04	5.62
16	OFF	2127221.65	2555926.79	1.20	10.16	8.25
16	ON	2450499.40	2788997.07	1.14	9.99	7.99

NVIDIA DGX-2 XLA-ON / XLA-OFF training speedup

For each configuration of parameters present in the table, the Speedup column shows the speedup achieved by turning on XLA.

GPUs	AMP	Speedup
1	FP32	1.172
1	AMP	1.127
8	FP32	1.132
8	AMP	1.161
16	FP32	1.152
16	AMP	1.091



NVIDIA DGX A100 / DGX-2 (Ampere / Volta) training speedup

GPUs	XLA	Precision	Speedup
1	OFF	TF32/FP32	1.802
1	OFF	AMP	1.549
1	ON	TF32/FP32	1.857
1	ON	AMP	1.620
8	OFF	TF32/FP32	1.650
8	OFF	AMP	1.541
8	ON	TF32/FP32	1.795
8	ON	AMP	1.518



Inference performance results

Our results were obtained by running the scripts/run_model.sh script in the TensorFlow2 21.10-py3 NGC container.

Numbers were averaged over 10 separate runs for each configuration.

For each run, performance numbers (in samples per second) were averaged over training steps from one epoch which gives reliable estimates of the throughput. We also exclude the first 20 steps of training as a warmup phase.

To achieve these same results, follow the steps in the Quick Start Guide.

Inference performance: NVIDIA DGX A100 (8x A100 80GB)

Batch Size	XLA	Throughput - TF32 (samples/s)	Throughput - mixed precision (samples/s)	Throughput speedup (mixed precision / TF32)
4096	ON	618547.45	669640.65	1.08
8192	ON	722801.14	849101.88	1.17
16384	ON	859418.77	1051361.67	1.22
32768	ON	976771.70	1269000.97	1.30
65536	ON	1082688.51	1444729.52	1.33
131072	ON	1094733.64	1483542.86	1.36

Complete table of DGX A100 inference performance results

Batch Size	XLA	Precision	Throughput (samples/s)
4096	OFF	TF32	708349.73 ± 14161.58
8192	OFF	TF32	873335.82 ± 8539.56
16384	OFF	TF32	937987.79 ± 12114.34
32768	OFF	TF32	943313.07 ± 8631.81
65536	OFF	TF32	960794.46 ± 7388.45
131072	OFF	TF32	966245.27 ± 8637.82
4096	OFF	AMP	645394.94 ± 14844.27
8192	OFF	AMP	919410.07 ± 11355.28
16384	OFF	AMP	1136346.66 ± 14529.91
32768	OFF	AMP	1216810.45 ± 21013.12
65536	OFF	AMP	1287305.05 ± 19373.18
131072	OFF	AMP	1298478.97 ± 10733.67
4096	ON	TF32	618547.45 ± 6569.97
8192	ON	TF32	722801.14 ± 9448.19
16384	ON	TF32	859418.77 ± 10012.61
32768	ON	TF32	976771.70 ± 13377.36
65536	ON	TF32	1082688.51 ± 8523.55
131072	ON	TF32	1094733.64 ± 11157.18
4096	ON	AMP	669640.65 ± 9319.68
8192	ON	AMP	849101.88 ± 14068.04
16384	ON	AMP	1051361.67 ± 15310.42
32768	ON	AMP	1269000.97 ± 23971.56
65536	ON	AMP	1444729.52 ± 18011.54
131072	ON	AMP	1483542.86 ± 6751.29

DGX A100 XLA-ON / XLA-OFF inference Speedup

For each configuration of parameters present in the table, the Speedup column shows the speedup achieved by turning on XLA.

Batch Size	Precision	Speedup
4096	TF32	0.873
8192	TF32	0.828
16384	TF32	0.916
32768	TF32	1.035
65536	TF32	1.127
131072	TF32	1.133
4096	AMP	1.038
8192	AMP	0.924
16384	AMP	0.925
32768	AMP	1.043
65536	AMP	1.187
131072	AMP	1.143



Inference performance: NVIDIA DGX-2 (16x V100 32GB)

Batch Size	XLA	Throughput - FP32 (samples/s)	Throughput - mixed precision (samples/s)	Throughput speedup (mixed precision / FP32)
4096	ON	444532.22	541975.24	1.22
8192	ON	505047.64	642784.48	1.27
16384	ON	549325.54	727077.63	1.32
32768	ON	587452.73	788606.35	1.34
65536	ON	605187.67	832651.59	1.38
131072	ON	599557.03	840602.90	1.40

Complete table of DGX-2 inference performance results

Batch Size	XLA	Precision	Throughput (samples/s)
4096	OFF	FP32	459175.30 ± 23184.33
8192	OFF	FP32	499179.20 ± 15967.26
16384	OFF	FP32	525180.72 ± 2521.56
32768	OFF	FP32	532042.10 ± 4020.44
65536	OFF	FP32	534307.20 ± 7276.26
131072	OFF	FP32	532311.44 ± 6195.16
4096	OFF	AMP	581771.66 ± 6163.50
8192	OFF	AMP	665048.04 ± 4607.95
16384	OFF	AMP	716355.19 ± 7174.98
32768	OFF	AMP	741642.61 ± 4981.04
65536	OFF	AMP	755141.25 ± 6175.05
131072	OFF	AMP	744459.46 ± 8183.17
4096	ON	FP32	444532.22 ± 6239.01
8192	ON	FP32	505047.64 ± 6543.06
16384	ON	FP32	549325.54 ± 2841.21
32768	ON	FP32	587452.73 ± 2366.43
65536	ON	FP32	605187.67 ± 3740.07
131072	ON	FP32	599557.03 ± 11811.28
4096	ON	AMP	541975.24 ± 4441.93
8192	ON	AMP	642784.48 ± 4721.08
16384	ON	AMP	727077.63 ± 5332.80
32768	ON	AMP	788606.35 ± 11705.36
65536	ON	AMP	832651.59 ± 10401.17
131072	ON	AMP	840602.90 ± 16358.73

DGX-2 XLA-ON / XLA-OFF inference speedup

For each configuration of parameters present in the table, the Speedup column shows the speedup achieved by turning on XLA.

Batch Size	Precision	Speedup
4096	TF32	0.968
8192	TF32	1.012
16384	TF32	1.046
32768	TF32	1.104
65536	TF32	1.133
131072	TF32	1.126
4096	AMP	0.932
8192	AMP	0.967
16384	AMP	1.384
32768	AMP	1.063
65536	AMP	1.103
131072	AMP	1.129



NVIDIA A100 / DGX-2 (Ampere / Volta) inference speedup

Batch Size	XLA	Precision	Speedup
4096	OFF	TF32/FP32	1.54
8192	OFF	TF32/FP32	1.75
16384	OFF	TF32/FP32	1.79
32768	OFF	TF32/FP32	1.77
65536	OFF	TF32/FP32	1.80
131072	OFF	TF32/FP32	1.81
4096	OFF	AMP	1.11
8192	OFF	AMP	1.38
16384	OFF	AMP	1.59
32768	OFF	AMP	1.64
65536	OFF	AMP	1.71
131072	OFF	AMP	1.74
4096	ON	TF32/FP32	1.39
8192	ON	TF32/FP32	1.43
16384	ON	TF32/FP32	1.56
32768	ON	TF32/FP32	1.66
65536	ON	TF32/FP32	1.79
131072	ON	TF32/FP32	1.83
4096	ON	AMP	1.24
8192	ON	AMP	1.32
16384	ON	AMP	1.45
32768	ON	AMP	1.61
65536	ON	AMP	1.74
131072	ON	AMP	1.76
